This product is an industrial-grade fiber media converter, it’s designed for media conversion or extension of network transmission between 1 port of 10/100/1000Base-T twisted pair and 1000Base-FX fiber optic media. It is primarily used for long-distance (20/40/60/80/100 kilometers) transmission in fiber optic networks. The device features 1 Gigabit optical port, 1 Gigabit Ethernet port, and an optional Console port. It incorporates comprehensive alarm functions, ensuring stable and reliable operation, low power consumption, high integration, and compact size.
- Product Search Guide: space = AND, | = OR, ! = NOT

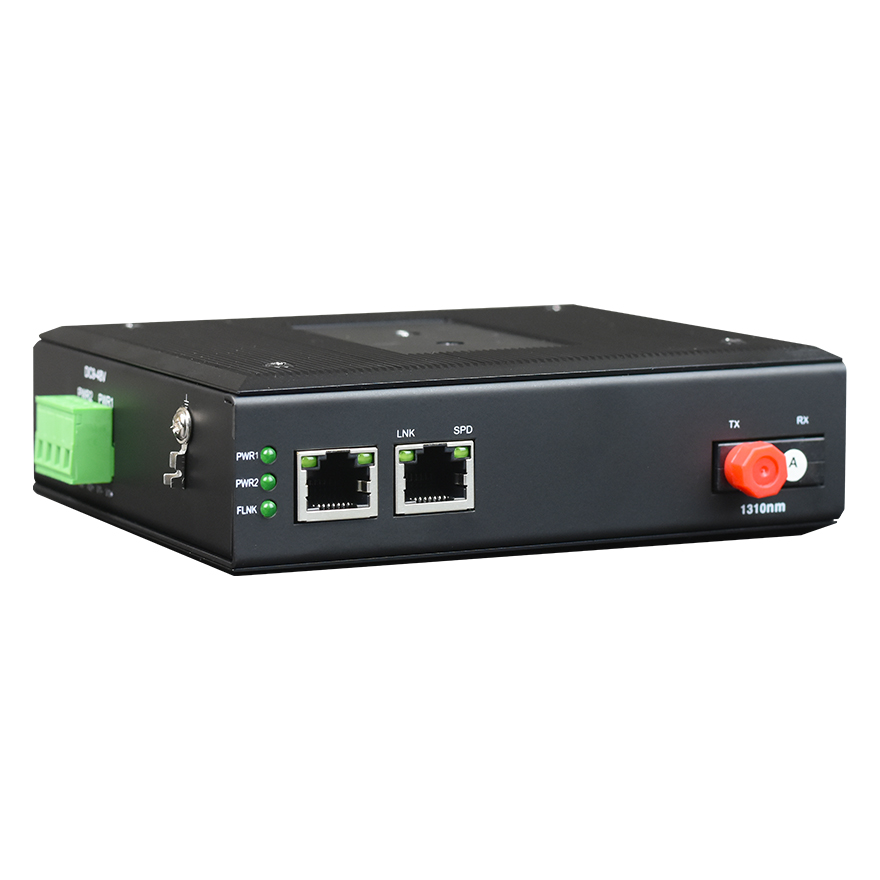

Industrial Gigabit Ethernet Copper to Fiber Media Converter
Model
FCMG-G1
Description :
This product is an industrial-grade fiber media converter, it's designed for media conversion or extension of network transmission between 1 port of 10/100/1000Base-T twisted pair and 1000Base-FX fiber optic media.
Overview
Features
● The device is specifically designed for harsh industrial environments.

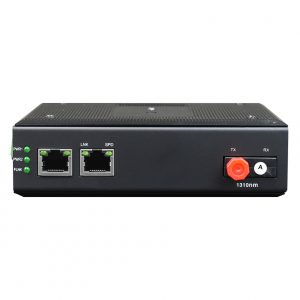

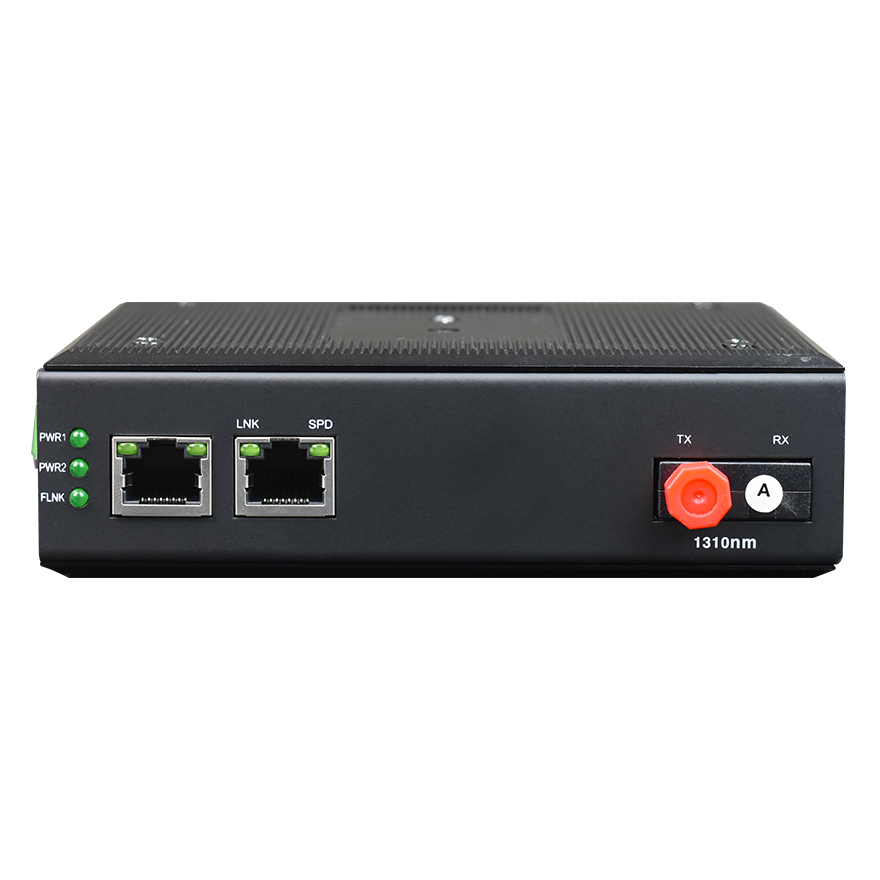

● It provides 1 Gigabit Ethernet port and 1 Gigabit optical port.
● The ethernet port (RJ45) supports 100/1000Mbps auto-negotiation, full/half duplex mode, and automatic MDI/MDI-X detection.
● The fiber interface supports multi-mode dual-fiber, single-mode dual-fiber, and single-mode single-fiber transmission modes, with optional SC/ST/FC/LC interfaces.
● It features functions such as broadcast storm protection, flow control, collision isolation, error detection, and auto-reset in case of system freeze, making it suitable for high-bandwidth data applications such as video transmission.
● The device has a built-in 1MBits high-speed buffer to prevent video transmission lag in rapidly changing monitoring scenes.
● It supports the transmission of VLAN jumbo frames and can be used with switches that support the IEEE 802.1Q protocol, supporting Ethernet frames up to 9K bytes.
● The optional Console port allows for reading the device status and configuring its parameters.
● It supports internal isolation and redundant dual power inputs.
● It supports a wide range of 9-55V AC/DC power input.
● The power supply has overload protection and reverse connection protection.
● It complies with industrial-grade electromagnetic compatibility requirements.
● It has strong lightning protection capabilities, with resistance to lightning strikes, high voltage induction, and surge protection.

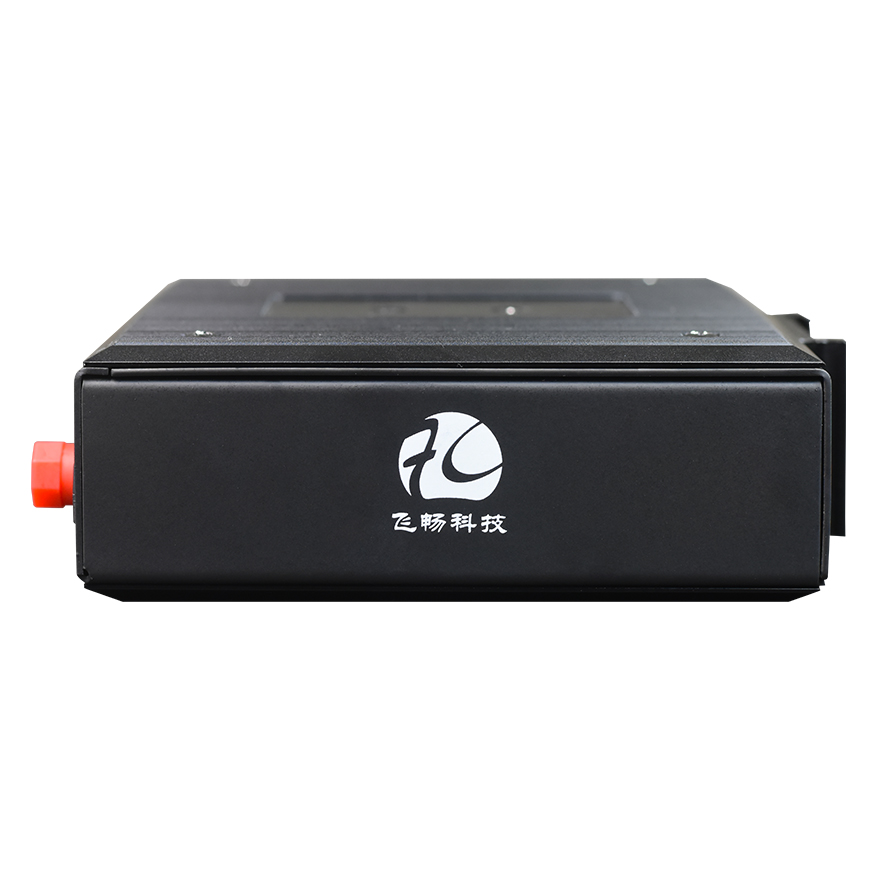

● The device is housed in an anodized aluminum alloy enclosure with an IP40 protection rating, capable of withstanding harsh environmental conditions.

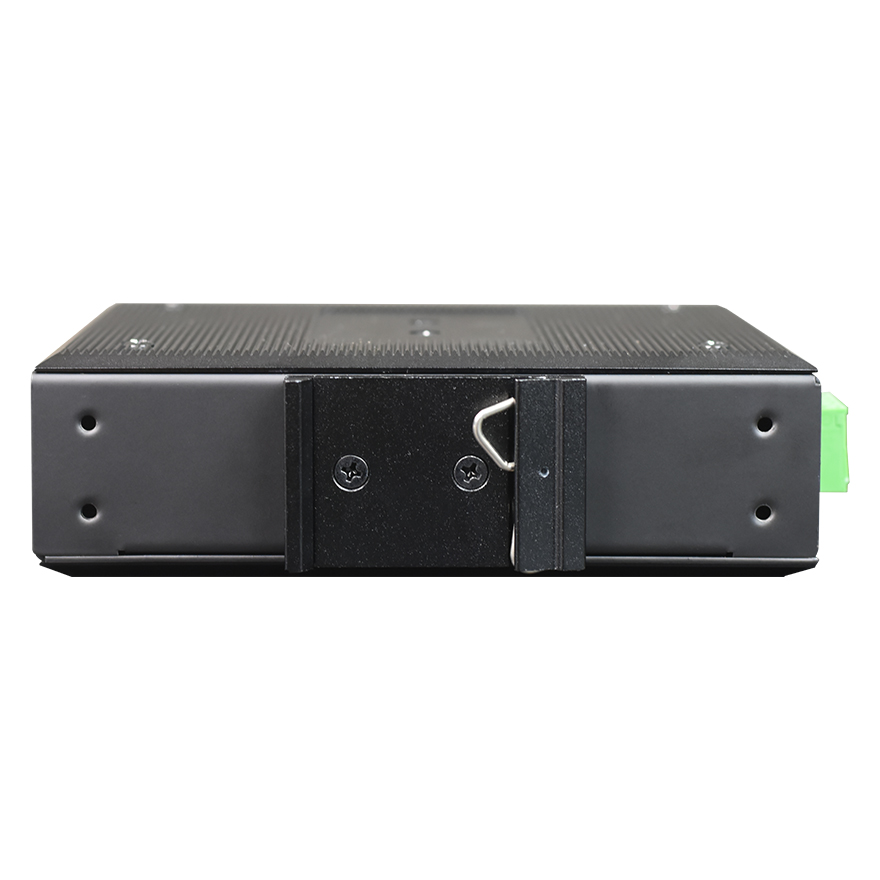

● It can be mounted on a DIN rail or wall-mounted.
● Wide temperature range: operating temperature from -40°C to +85°C.
● The device undergoes 100% burn-in testing, with a warranty period of 5 years.
Parameters
● Fiber
Fiber Type: Single-mode, Multi-mode
Fiber Interfaces: FC/SC/ST/LC (SFP)
Wavelength: 850nm/1310nm (Multi-mode); 1310nm/1550nm (Single-mode)
Maximum Transmission Distance without Relay: 20-120km
Typical Transmit Power:
Single-mode 1310/1550nm: ≥ -9dBm
Multi-mode 850nm: -18dBm
Multi-mode 1310nm: -25dBm
Receive Sensitivity Range: -28dBm to -40dBm
● 10/100/1000M Ethernet Interface
Protocol: Compliant with IEEE 802.3z, IEEE 802.3ab
Speed: 10/100/1000M auto-negotiation, full/half duplex, fully adaptive
MAC Address Table: Supports up to 4096 MAC addresses
Physical Interface: RJ45 connector, supports Auto-MDIX (auto crossover/direct connection)
● Working Environment
Working temperature: -40°C ~ 85°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 90°C
Storage Humidity: 5%~95 % (no condensation)
Specifications
|
Model |
FCMG-G1 |
|
Function Description |
Industrial rail type GE Fiber Media Converter |
|
Port Description |
1 Fiber port; 1 GE port |
|
Power Supply |

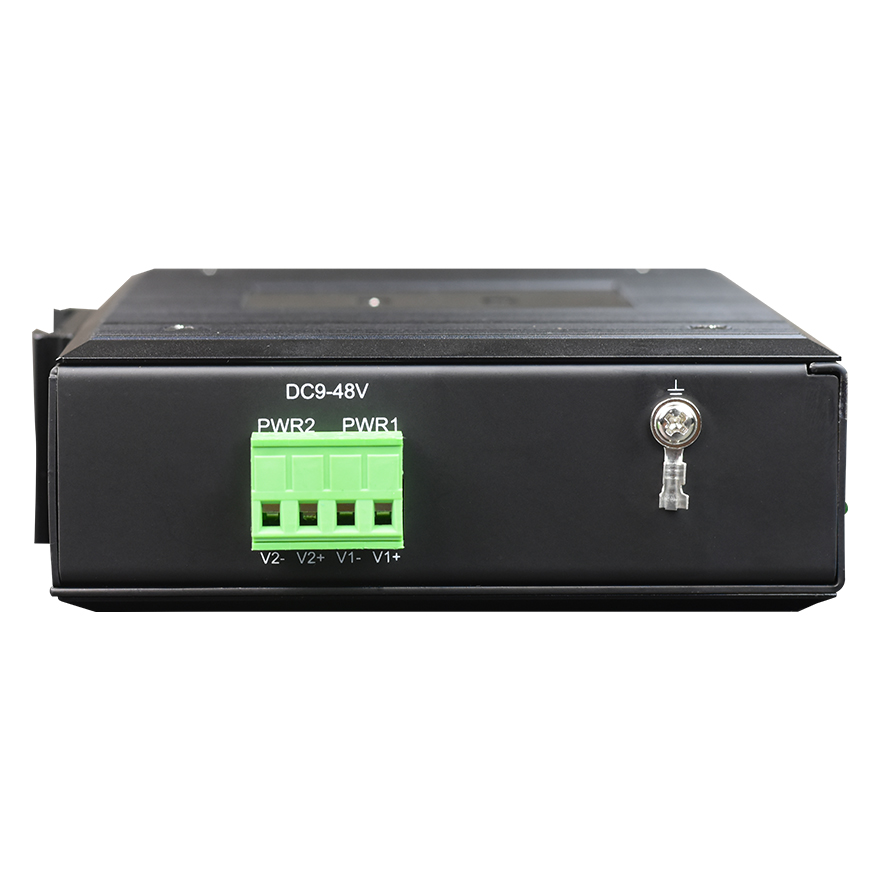

Dual redundant power inputs DC9-48V/AC9-48V, power consumption <10W Overload Protection: Support reverse polarity protection: Support redundancy protection: Support Access Terminal: 4-pin plug-in terminal pitch of 5.08mm |
|
Dimension |
Product Size: 133 X120 X40mm (WXDXH) |
|
Weight |
0.685KG |
