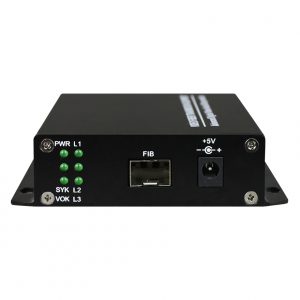

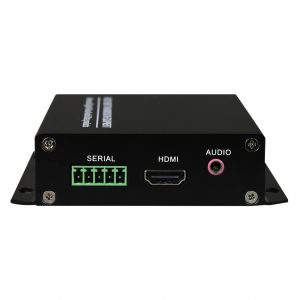

4K 60Hz HDMI 2.0 to Fiber Optic Converter

The 4K 60Hz HDMI 2.0 fiber extender supports 4K resolution and 18G high-speed video bandwidth. It uses a single fiber to extend the HDMI signal, speaker, microphone, RS232, etc. EDID real-time return supports the transmission of RS232 serial signal, it is used for communication with LCD and camera pan tilt, and it can also be used for long-distance transmission of the touchscreen. The device has features of low energy consumption, long-distance transmission, plug-and-play, strong compatibility, and can realize a more accurate display.

● The device features fully digital, uncompressed, and high-definition fiber optic transmission.

● It supports transparent transmission of video signals with a bandwidth of 18Gbps, without compression or delay.

● It is compatible with HDMI 1.4/2.0b and HDCP 1.4/2.2 standards, enabling the transmission of high-definition and 3D video signals. It can achieve a maximum resolution of 4096×2160@60HZ 4:4:4.

● It can reverse transmit EDID and support HDCP content protection.

● The device automatically recognizes and configures various display modes.

● It is equipped with either independent analog audio or one RS232/422/485 serial port for data transmission.

● The HDMI interface of the device has built-in ESD protection circuitry, effectively preventing electrostatic damage.

● It can be easily installed on-site and is plug-and-play, requiring no additional configuration.

● It supports multi-mode fiber for distances up to 300 meters and single-mode fiber for distances ranging from 10 to 80 kilometers, making it suitable for long-distance transmission.

● The device is housed in an aluminum alloy anodized casing, designed to withstand harsh industrial environments with extreme temperatures.

● It utilizes full surface mount technology, ensuring high reliability.

● It does not need software settings and supports plug-and-play and hot-swap functions.

● Fiber

Number of optical fibers: single fiber, double fiber

Optical fiber interface: LC

Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode

Transmission distance: 10-80km

Typical transmit power:

Single mode 1310/1550nm: ≥ – 9dbm

Multimode 850nm: – 18dbm

Multimode 1310nm: – 25dbm

Acceptance sensitivity range: – 33dbm ~ – 40dbm

● HDMI Port

● Serial Port

standard

EIA/TIA-232 RS-232 (ITU-T V.28)

EIA/TIA-422 RS-422 (ITU-T V.11)

EIA/TIA-485 RS-485 (ISO/IEC8284)

Serial interface:

RS-422: TxD+ TxD- RxD+ RxD-

RS-485 4 wires: TXD + TXD – RXD + RXD – RS-485 2 wires: a (corresponding to TX +) B (corresponding to TX -) ground

RS-232: RXD TXD Signal Ground

● Power

System power: AC180V～260V

Power consumption: ≤10W

● Environmental Indicators

working temperature: -10℃ – +55℃

Storage temperature: -40℃ – +90℃

Working humidity: 0%—95% (No condensation)

MTBF: ＞100,000 hours
