2 Port Serial to Fiber Converter | RS485/422/232 Support All at Once

View : 230
Type : Serial to Fiber Converter
Description :

The serial to fiber converter adopts industrial-grade and large-scale FPGA design, it provides 2 serial ports, and each port supports RS232/422/485 three interfaces at the same time.

Overview

This product adopts industrial-grade and large-scale FPGA design, it provides 2 serial ports, and each port supports RS232/422/485 three interfaces at the same time. This device is the best choice for connecting the remote terminal unit (RTU) to the host computer (HOST) or distributed data acquisition system (SCADA) controller, with a high performance-price ratio. The effective communication distance can reach 0-120 KM, and the communication rate of the serial port can reach 0-256KBPS.



Due to the use of optical fiber as the transmission medium, it can completely avoid the threat of lightning, surge, electromagnetic interference, and other threats to communication equipment in harsh environments, and at the same time save the investment in lightning and surge protection equipment when using copper wires.

Features

Integrated circuits based on independent intellectual property rights;

Provide 2 serial ports, and each serial port provides three serial interfaces of RS232/422/485 at the same time (the interface type can be set by DIP switch), which is convenient for on-site service opening;

It can automatically detect and control the RS-485 data flow. It is unnecessary to use the handshake signal to control the data flow;

It has the ability to automatically detect the baud rate of the serial port signal;

The serial number channel can transmit asynchronous serial port data adaptive from 0-256Kbps baud rate;

Serial port interface anti-radar to IEC61000-4-5 (10/700μS) differential mode: 6KV impedance (2Ω); common mode: 6KV, impedance (2Ω) standard;

When dual DC power supply (5.08 terminal):

  It can be powered by DC9-55V or AC7-50V wide-range power supply. The power supply has the function of polarity automatic detection, and there is no need to distinguish between positive and negative poles during installation;

  ● Support internal isolation, redundant dual power input; anti-reverse protection;

When AC power supply (three-position plum blossom AC seat):

  Support AC~85-265V AC, or DC110-300V DC wide range input;

● Provide DIN 35mm rail or wall-mounted installation.

Parameters

● Fiber

Number of Fiber Ports: 1
Fiber core: Single fiber/dual fiber

Connector: FC/SC/ST/LC (SFP)

Wavelength: 850nm/1310nm multi-mode;1310nm/1550nm single-mode

No relay transmission distance: 20~120Km

Typical output power:
Single mode 1310/1550nm: >-9dBm
Multi-mode 850nm: -18dBm
Multi-mode 1310nm: -25dBm
Receiver Sensitivity: -28dBm~- 40dBm



● Working Environment

Operating temperature: -40 ℃ – +85 ℃

Storage temperature: -40 ℃ – +85 ℃

Humidity: 0% -95% (non-condensing)

MTBF: > 100,000 hours



● Serial Port

Standard

EIA/TIA-232 RS-232 (ITU-T V.28)

 EIA/TIA-422 RS-422 (ITU-T V.11)

 EIA/TIA-485 RS-485 (ISO/IEC8284)



1

2

3

4

5

6

7

8

No.1/2

1

2

RS422

TX+

TX-

RX+

RX-

TX+

TX-

RX+

RX-

RS485

A

B

FG

A

B

FG

RS232

TXD

RXD

GND

TXD

RXD

GND





DIP1

DIP2

DIP3

DIP4

No.1/2

1

2

RS422

OFF

OFF

OFF

OFF

RS485

ON

ON

ON

ON

RS485

OFF

ON

OFF

ON

RS232

ON

OFF

ON

OFF

Specifications

Model Number

FCP-RDQ2G

Function Description

Transmit 2 channels of RS232/422/485 on optical fiber (three interfaces are provided at the same time)

Port Description

1 optical fiber interface; 2 RS232/422/485 serial ports

Power Supply

DC power supply:

Redundant dual power input DC9-70V or AC7-50V, power consumption <5W

Overload protection: support; reverse polarity protection: support; redundant protection: support

Access terminal: 4-core 5.08mm pitch plug-in terminal

AC built-in power supply:

AC~85-265V, or DC110-300V wide range input, power consumption <5W

Overload protection: support;

Access interface: Three-position Cross Style AC seat

Product Size

(110mm(L) x 86mm(W) x 40.5mm(H)

Installation method: guide rail installation, wall-mounted installation

Weight

0.295Kg/pcs

Application

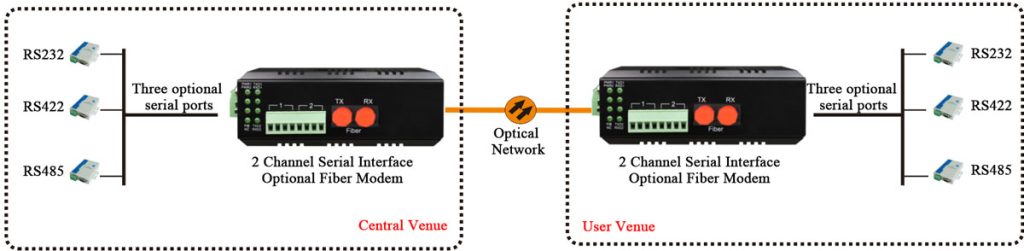

application of 2 port serial to fiber
